Product Overview

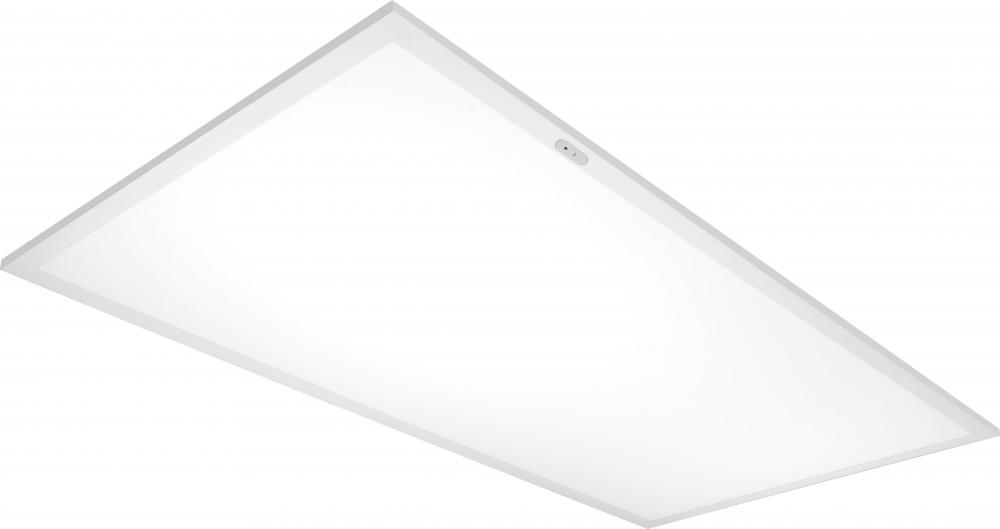

LED Emergency Flat Panel Fixture; 50W; 2 ft. x 4 ft.; 3500K

Standard Information

Category:

Specialty Items

Subcategory:

Fluorescent Decorative Panels

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Flat Panel

Sub Category:

Edge Lit Emergency

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Neutral White

Dimmable:

Yes-Dimmable

Each Height:

25.6

Each Length:

49.5

Each Width:

2.9

Length:

47.81

Lumens:

4906L

Tariff Code:

9405.40.8200

Warranty:

5 Year Limited - Fixtures

Amps:

0.500-0.181A

ANSI Base:

Integrated

BAA Compliant:

No

Battery Chemistry:

Lithium-ion (Li-ion)

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

2.1267

Each Quantity:

1

Efficacy:

98.12 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Rectangle

Flicker Free:

Yes

Has Emergency Battery:

Yes

Incandescent Equivalent:

300W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Panel Size:

2x4

Power Factor:

0.92

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

2X4 EM FLAT PANEL/3500K

Temperature (CCT):

3500K

Title 20 Compliant:

No

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

15.39
