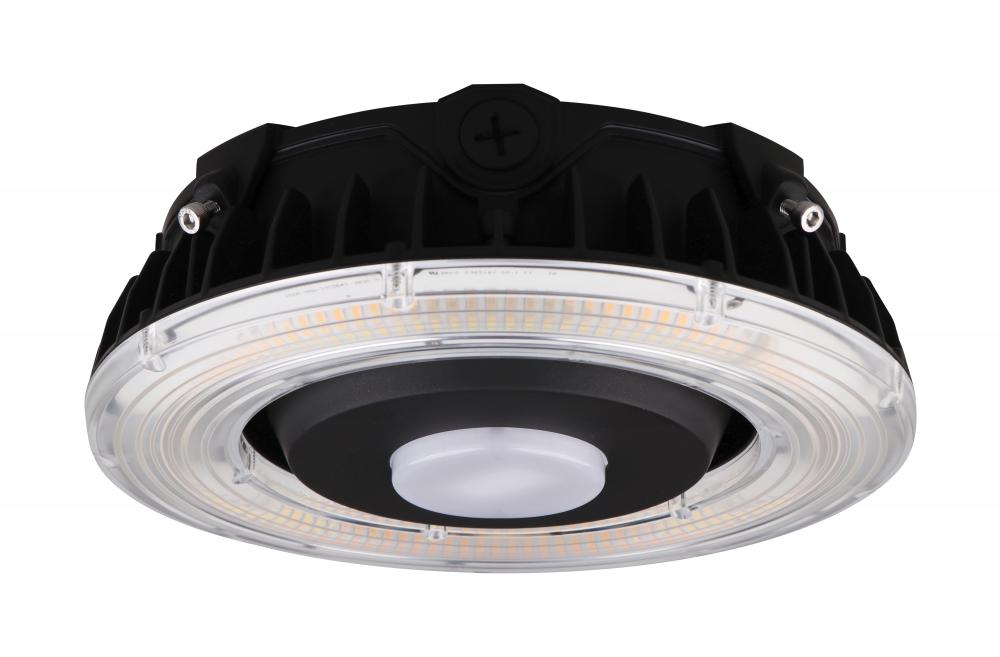

LED Canopy Fixture; 25 Watt; CCT Selectable; Bronze Finish; 100-277 Volt
$181.35 CAD
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
We have 0 between our warehouses in Edmonton and Calgary. Our supplier has 201 in stock. The ETA is 3-5 weeks when orders are placed beyond store stock. Please see our Terms and Conditions for details.
Dimensions
Height: 3.13"
Width: 10.03"
Product Overview
LED Canopy Fixture; 25 Watt; CCT Selectable; Bronze Finish; 100-277 Volt
Standard Information
Category:
Specialty Items
Subcategory:
Canopies
Finish:
Bronze
Style:
Traditional
Option:
LED
Prop 65
Refinement Options
Category:
Surface Mount
Sub Category:
Canopy Fixture
Style:
Utility
Additional Info:
UV stabilized powder coated finish
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Diameter:
10.03
Dimmable:
Yes-Dimmable
Each Height:
5.51
Each Length:
11.81
Each Width:
11.81
Lumens:
2800L-3322L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
11.81
Amps:
0.250-0.090A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
150
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Parking Garage Luminaires
Each Cube:
0.4447
Each Quantity:
1
Efficacy:
112.00/122.44/132.88 LPW
FCC Compliant:
Yes
Feature 1:
Adjustable color temperature: 3000K, 4000K, 5000K
Feature 2:
Adjustable lumen range: 2800~3322
Feature 3:
DLC Premium certified
Feature 4:
1-10V dimming
Feature 5:
IP65 Rated
Feature 6:
150 degree beam spread
Feature 7:
150 degree beam spread
Finish Family:
Bronze
IC Rated:
Yes
Impact Rating (IK):
IK10
Incandescent Equivalent:
80W
Indoor Outdoor:
Outdoor
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-624 25-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture
Material:
Aluminum Alloy
Mounting Procedure:
Ceiling
Operating Frequency:
50-60Hz
Operating Temp:
-30C (-22F) to +50C (+122F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 25-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is easy
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
25W LED CANOPY LIGHT
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
4.41
Wire Quantity:
5
Wire Temp Rating:
105C (221F)
