Product Overview

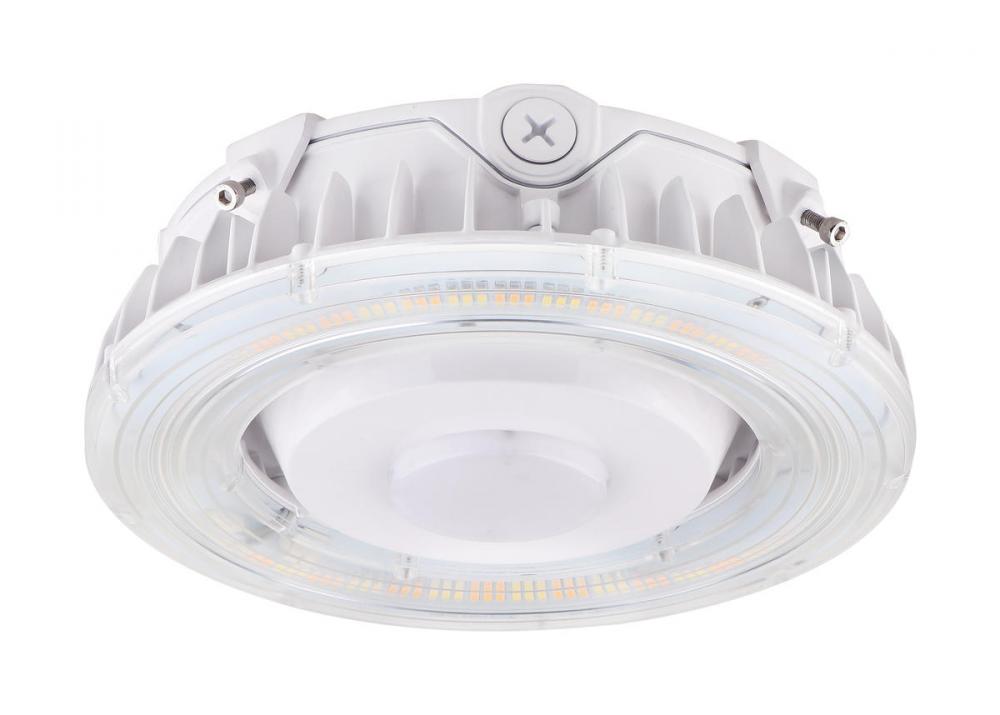

LED Canopy Fixture; 100 Watt; CCT Selectable; White Finish; 100-277 Volt

Standard Information

Category:

Specialty Items

Subcategory:

Canopies

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Surface Mount

Sub Category:

Canopy Fixture

Style:

Utility

Additional Info:

UV stabilized powder coated finish

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

11.03

Dimmable:

Yes-Dimmable

Each Height:

5.51

Each Length:

12.8

Each Width:

12.8

Lumens:

11946L-13999L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

11.81

Amps:

1.000-0.361A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

150

B_U_G_Rating:

B3-U3-G3

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Parking Garage Luminaires

Each Cube:

0.5224

Each Quantity:

1

Efficacy:

119.46/129.73/139.99 LPW

FCC Compliant:

Yes

Feature 1:

Adjustable color temperature: 3000K, 4000K, 5000K

Feature 2:

Adjustable lumen range: 11946~13999

Feature 3:

DLC Premium certified

Feature 4:

1-10V dimming

Feature 5:

IP65 Rated

Feature 6:

150 degree beam spread

Feature 7:

150 degree beam spread

Finish Family:

White

IC Rated:

Yes

Impact Rating (IK):

IK10

Incandescent Equivalent:

300W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-631 100-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture

Material:

Aluminum Alloy

Mounting Procedure:

Ceiling

Operating Frequency:

50-60Hz

Operating Temp:

-30C (-22F) to +50C (+122F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's 100-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is eas

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

100W LED CANOPY LIGHT

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

15%

Wattage Selectable:

No

Weight Lb.:

6.56

Wire Quantity:

5

Wire Temp Rating:

105C (221F)
