Product Overview

LED Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 120-277 Volt; ColorQuick Technology; PowerQuick Technology

Standard Information

Category:

Specialty Items

Subcategory:

Lighting Accessories

Option:

LED

Prop 65

Refinement Options

Category:

Flat Panel

Sub Category:

Backlit

Style:

Utility

Additional Info:

Driver Specs - VDC38-48V; 430/620/810mA

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

25.2

Each Length:

25

Each Width:

2.56

Length:

23.75

Lumens:

2200L-4600L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

3.54

Air Tight:

No

Amps:

0.167-0.072/0.250-0.108/0.333-0.144A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Standard

DLC Primary Use:

2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube:

0.9333

Each Quantity:

1

Efficacy:

110.00/113.33/115.00 LPW

FCC Compliant:

Yes

Feature 1:

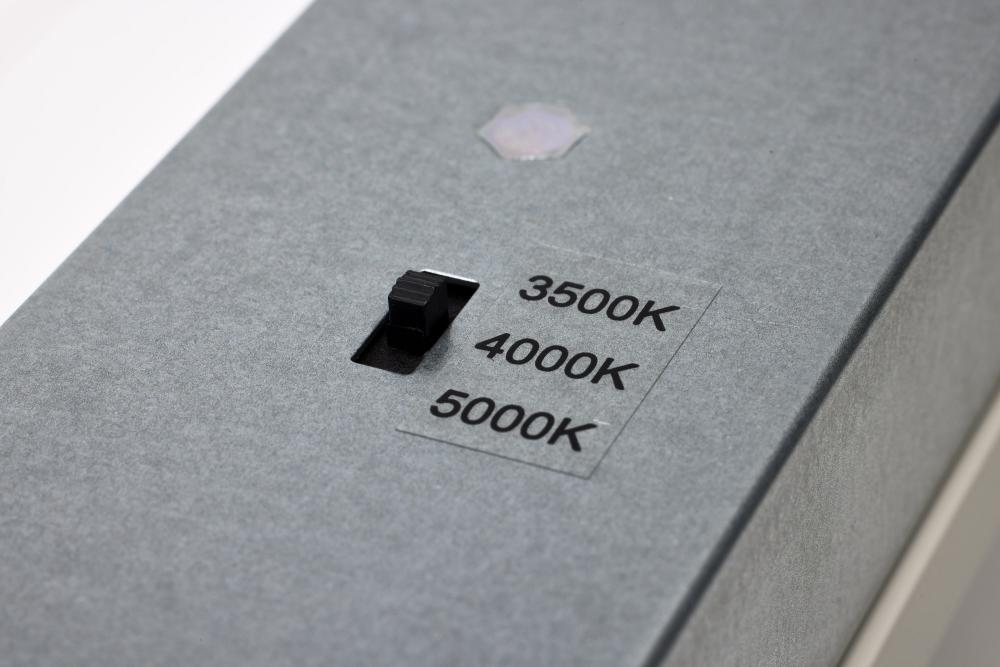

3500K/4000K/5000K CCT Selectable

Feature 2:

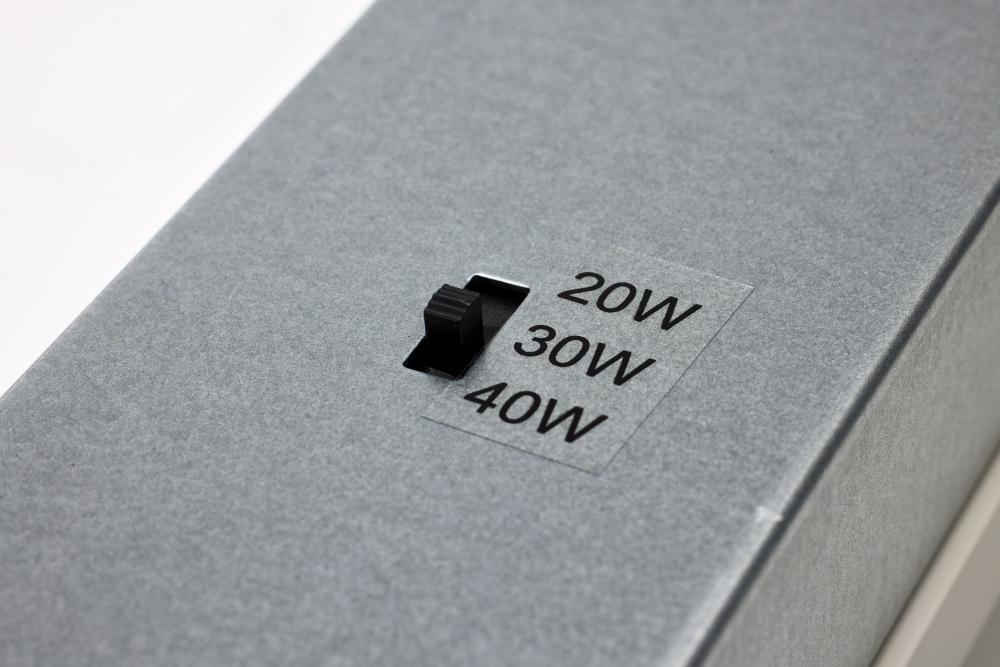

20W/30W/40W Wattage Selectable

Feature 3:

Backlit LED Technology

Feature 4:

Flicker Free, Even Light Distribution

Feature 5:

0-10V Dimmable

Feature 6:

50,000 average rated hours of use

Feature 7:

DLC Listed

Finish Family:

White

Fixture shape:

Square

Flicker Free:

Yes

IC Rated:

Yes

Incandescent Equivalent:

100W-150W

Indoor Outdoor:

Indoor

IOT Enabled:

No

IP Rating:

IP20

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO|NUVO's LED Backlit 2x2 Flat Panel 65-571R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t

Material:

Aluminum / Steel

Mounting Procedure:

Ceiling

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Pack Type:

Box

Panel Size:

2x2

Photocell:

No Photocell

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

11

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

2X2 LED BACKLIT FLAT PANEL

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

9%

Wattage Selectable:

Yes

Weight Lb.:

4.85

Wire Gauge:

14

Wire Temp Rating:

80C (176F)
