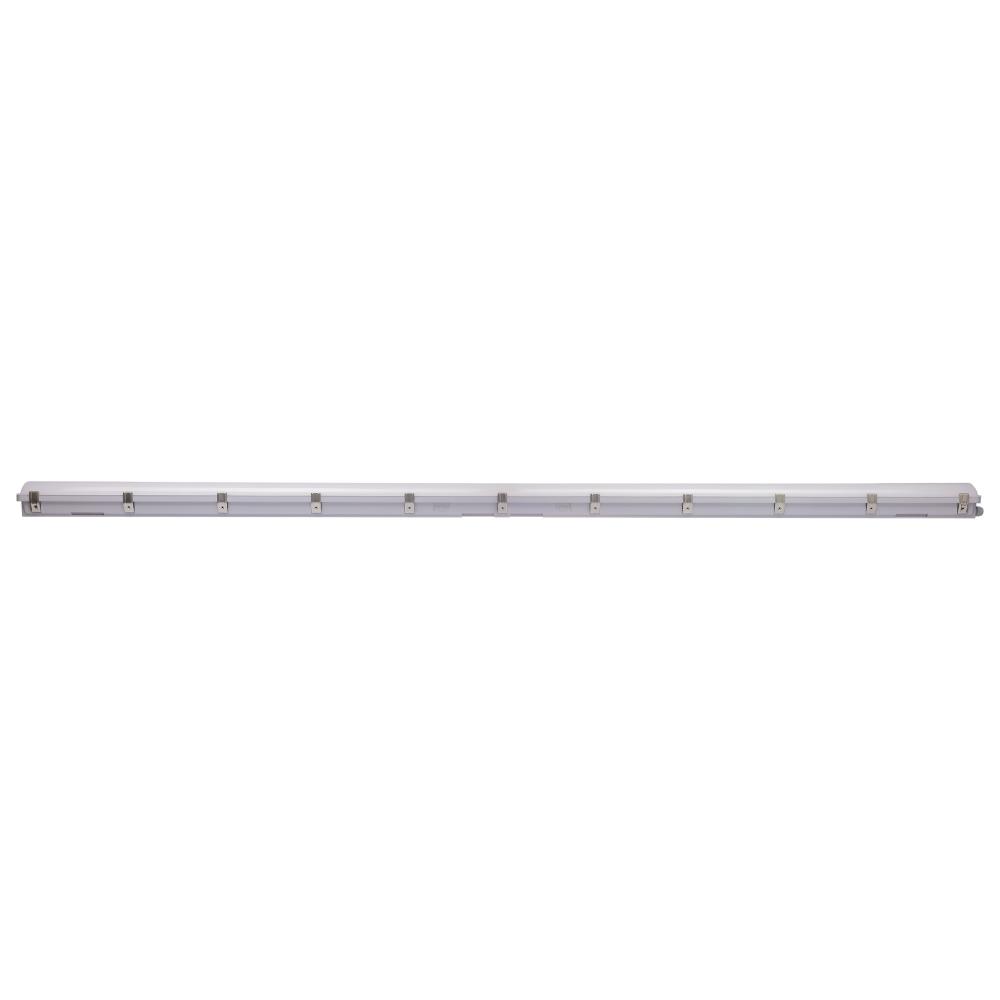

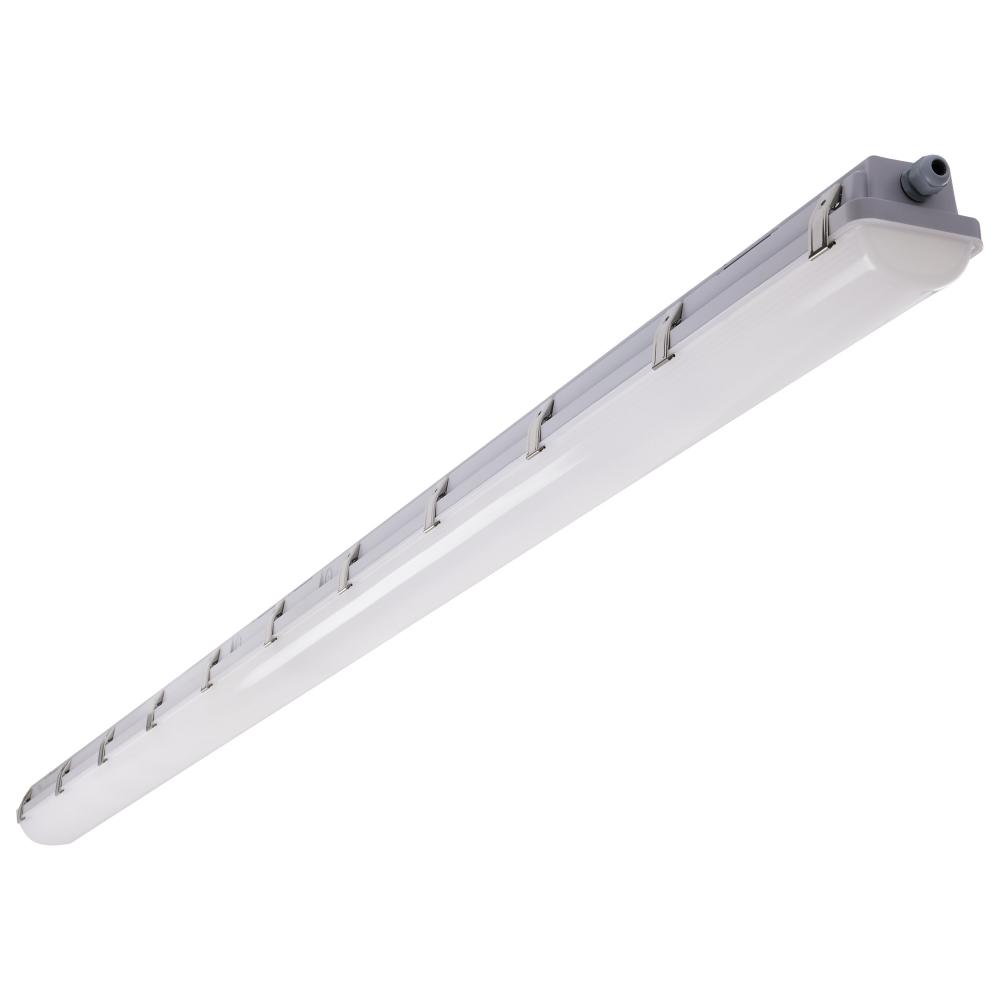

8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65

Part Number: 40JJM6J / Vendor ID #: 4800

8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65

$548.25 CAD

Item Sales Info

Add To Wishlist

Compare Item

Availability

We have 0 between our warehouses in Edmonton and Calgary. This item is not in stock with our supplier. Lead times will vary when orders are placed beyond our store availability. Please contact our team and we’ll find out more details for you!

Dimensions

Height: 3.46"

Width: 4.33"

Product Overview

8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated; 120V-347V

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

Gray

Option:

LED

Prop 65

Refinement Options

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

4.33

Each Length:

96.45999999999999

Each Width:

5.12

Length:

94.48999999999999

Lumens:

6400L-9360L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.417-0.144/0.500-0.173/0.600-0.207A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

CRI:

Dimmable Function:

0-10V; Integrated Sensor

DLC Classification:

Standard; Standard

DLC Primary Use:

Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

1.2375

Each Quantity:

Efficacy:

128.00/131.33/130.00 LPW

FCC Compliant:

Yes

Feature 1:

120-347 Voltage - FOR USE IN CANADA

Feature 10:

Suspension kit (sold separately)

Feature 2:

Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities

Feature 3:

IP65 and IK08 Rated

Feature 4:

CCT and Wattage Selectable

Feature 5:

2KV built-in Surge Protection

Feature 6:

Non-corrosive (PC) polycarbonate housing

Feature 7:

0-10V Dimmable

Feature 8:

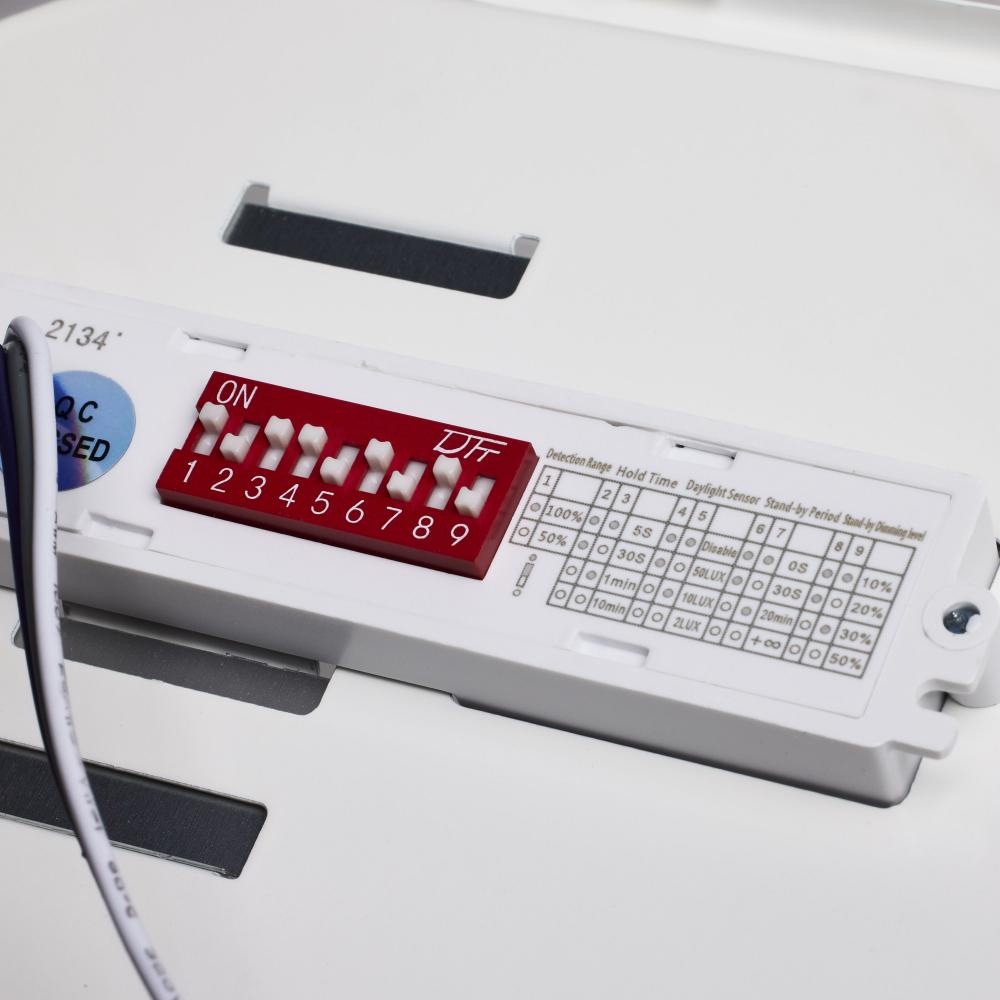

Integrated Microwave Sensor

Feature 9:

5 Year Warranty

Finish Family:

Gray

Fixture shape:

Linear

Flicker Free:

Has Driver:

Yes

HID Equiv:

150W-200W

Impact Rating (IK):

IK08

Incandescent Equivalent:

400W-500W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

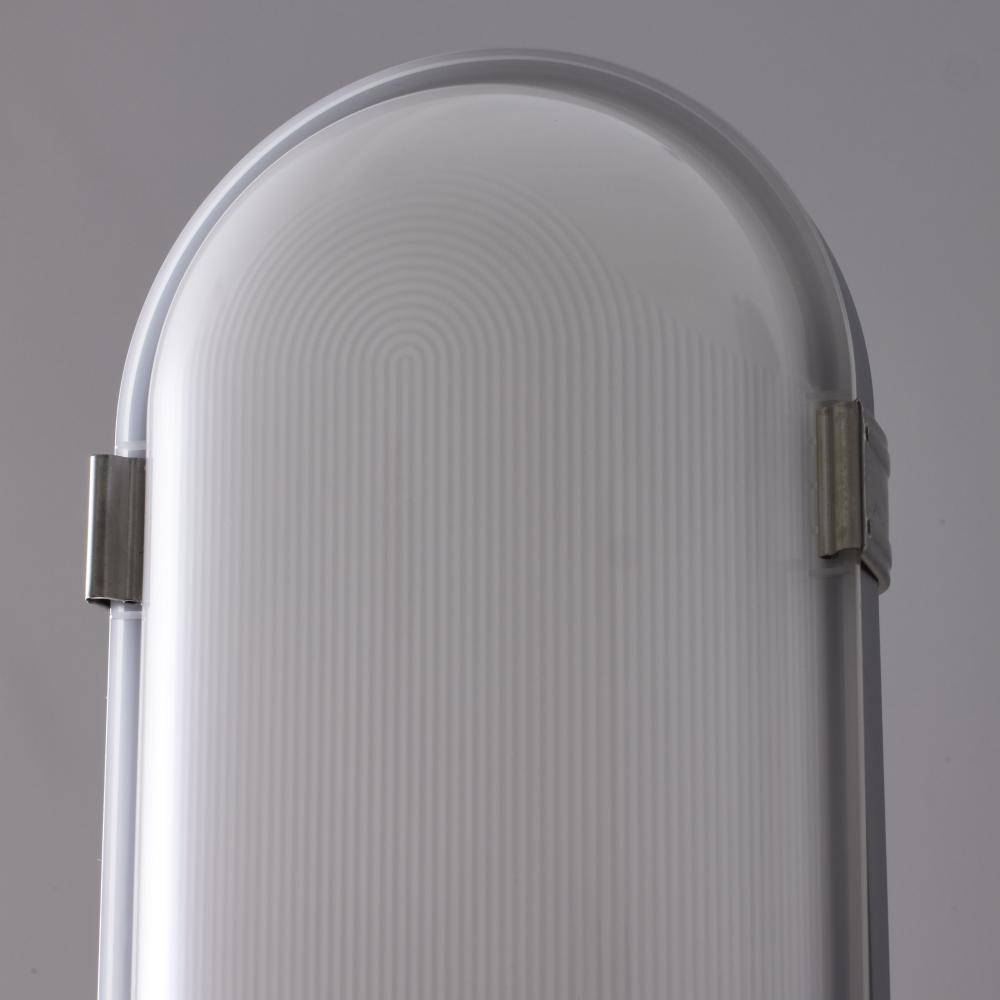

Lens Finish:

Opaque

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-825R1 wattage selectable, 8 foot vapor proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT and wattage selectable and wet location rated, with 2KV s

Material:

Plastic

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Pack Type:

Box

Photocell:

Integrated Microwave Sensor

Power Factor:

>0.96

Quantity In Pack:

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

8' LINEAR VAPOR PROOF W/SENSOR

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

14.20%

Wattage Selectable:

Yes

Weight Lb.:

12.13
